Conformal Antennas

Where zero or minimal protrusion from vehicle outer mold line is necessary.

SILVER: C-Band Telemetry Wraparound

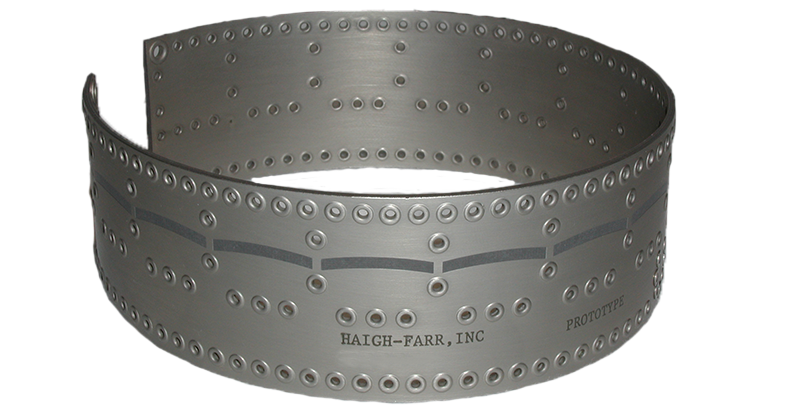

Product Images_C-Band_Conformal

WraparoundTM Antennas

The Haigh-Farr Wraparound™ is a self-contained, omnidirectional antenna for cylindrical or conical shaped vehicles. A single point feed is used and no external splitters, combiners or cable harnesses are required for installation. The antenna may be mounted flush, or on the exterior of the vehicle.

Designs are available from 300 MHz to 13 GHz with typical applications including Flight Termination, GPS, Telemetry, Data Links and Transponder. Multiple antennas can be combined within the same physical Wraparound™, providing a multi-task solution in a single, compact package.

The Wraparound™ antenna has been flown on all types of vehicles from subsurface sea to space, including high Mach kinetic kill weapons, high G projectiles and re-entry vehicles. The Haigh-Farr Wraparound™ antenna has qualified for use on high performance vehicles flown on test and launch ranges throughout the United States and Europe. For high aero-heating applications, an ablative heat shield may be added to the antenna.

With over 50 years experience designing and producing antennas, Haigh-Farr may already have a solution to meet your needs.  To request additional datasheets, please email datasheets@haigh-farr.com.

Features

  • Omnidirectional: full spherical coverage
  • 300 MHz to 13 GHz
  • Multi-channel designs
  • Single point feed
  • No external dividers and cables required
  • Conformal - flush or external mounting
  • Fastened or bonded to the vehicle
  • OEM or retro-fit applications
  • High aero-heating protection available
  • Rugged construction - designed for high G, high radial G (spinup), and extreme vibration environments

Applications

  • Launch vehicles
  • Atmospheric rockets
  • Missiles
  • Drones
  • High speed drones and targets
  • Artillery round
  • Spacecraft
  • Guided bomb
  • Scoring systems
  • Oil rigs
View More Details Download Spec Sheet  Antenna Questionnaire

Conformal-Flexislot-Antennas

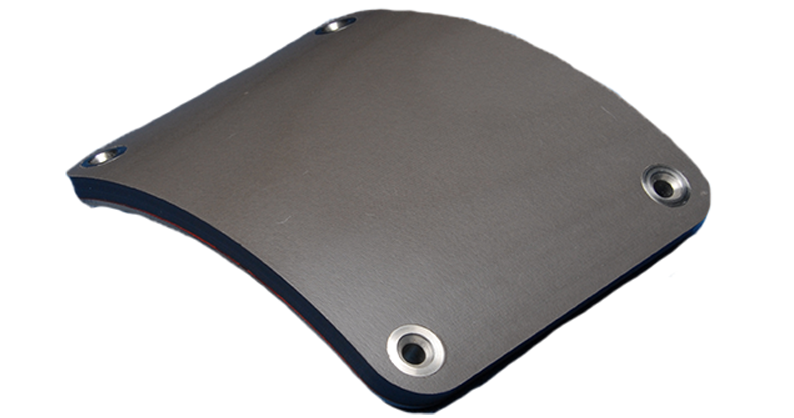

Product-Conformal_L-Band_telemetry

FlexislotTM Antennas

The Haigh-Farr Flexislot™ antenna is designed for simple installation and retrofit on flat, cylindrical and conical shaped bodies, and provides broad-beam E-plane pattern coverage. Designs are available from 300 MHz to 13 GHz.

The Flexislot™ may be arrayed to provide either directive beam shapes or wider spherical coverage. If more than one Flexislot™ is used, the necessary power divider circuitry may be contained within one of the elements, or provided as a separate device.

Haigh-Farr also manufactures the necessary cabling to feed multi-element systems. All multi-element configurations are tested as a system, including measuring the radiation patterns.

Offering unique mounting capabilities, the Flexislot™ may either be flush mounted or mounted directly to the exterior of the vehicle. It may also be secured to the vehicle using mechanical fasteners and/or adhesive bonding agents. This antenna can be mounted inside a radome for enhanced ruggedization. For high aero-heating applications an ablative heat shield may be added.

With over 50 years experience designing and producing antennas, Haigh-Farr may already have a solution to meet your needs.  To request additional datasheets, please email datasheets@haigh-farr.com.

Features

  • Omnidirectional: full spherical coverage
  • 300 MHz to 13 GHz
  • Multi-channel designs
  • Single point feed
  • No external dividers and cables required
  • Thin aerodynamic shape
  • Conformal - flush or external mounting
  • Fastened or bonded to the vehicle
  • OEM or retro-fit applications
  • High aero-heating protection available
  • Rugged construction - designed for high G, high radial G (spinup), and extreme vibration environments

Applications

  • Launch vehicles
  • Atmospheric rockets
  • Missiles
  • Drones
  • High speed drones and targets
  • Artillery round
  • Spacecraft
  • Guided bomb
  • Scoring systems
  • Oil rigs
View More Details Download Spec Sheet  Antenna Questionnaire

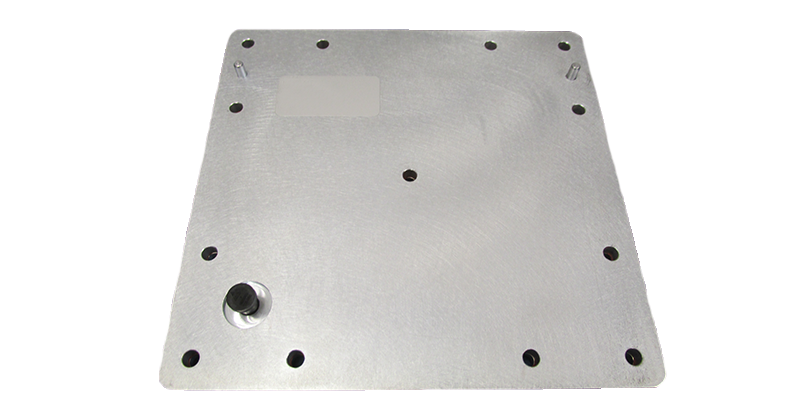

Product-Conformal_Omnislot_9700-Fairing-Recovery

Product-Omnislot_C-Band

OmnislotTM Antennas

Haigh-Farr Omnislot™ antennas provide the same radiation pattern characteristics as a stub or blade antenna in a thin, conformal, aerodynamic package. Omnislot™ antennas may be used in applications where blade antennas may be damaged, such as net retrieval of remotely piloted vehicles (RPVs) or high aero-heating environments. Custom shape requirements can be accommodated.

Typical applications include data links for high-rate imaging and communications, as well as transponder signals. Designs are available from 300 MHz to 13 GHz.

The Omnislot™ antenna is flush mounted or mounted directly to the exterior of the vehicle using mechanical fasteners and/or adhesive bonding agents. This antenna can be mounted inside a radome for enhanced ruggedization. For high aero-heating applications, an ablative heat shield may be added.

With over 50 years experience designing and producing antennas, Haigh-Farr may already have a solution to meet your needs.  To request additional datasheets, please email datasheets@haigh-farr.com.


Features

  • Omnidirectional in Azimuth
  • Designs from 300 MHz to 13 GHz
  • Conformal - flush or external mounting
  • Fastened or bonded to the vehicle
  • Thin Fabrication .085" to .300"
  • High aero-heating protection available
  • Rugged construction - designed for harsh elements

Applications

  • Missiles
  • Drones
  • Data Links, telemetry, transponder
  • Imaging downlinks
  • Aircraft
  • Missed Distance Targets
View More Details Download Spec Sheet  Antenna Questionnaire

Fixed-Beam-Array

Patch Antennas

Haigh-Farr patch antennas utilize our well-proven fabrication techniques and are designed to operate in high dynamic space environments. Patch antennas are thin, rugged, space qualified antennas with designs available from 150 MHz to 26 GHz and bandwidths from 1 to 10% of center frequency.

Typical applications include supersonic tactical missiles, rockets, satellites, launch vehicles, aircraft and spacecraft with a -100°C to +200°C operational temperature. The antenna is a stripline construction with all circuitry contained inside, and thus, well protected.

With over 50 years experience designing and producing antennas, Haigh-Farr may already have a solution to meet your needs.  To request additional datasheets, please email datasheets@haigh-farr.com.

Features

  • Coverage -Omni-spherical, Hemispherical, Directional, Beam
  • Designs from 150 MHz to 26 GHz
  • Conformal - flush or external mounting
  • Fastened or bonded to the vehicle
  • Thin Fabrication - as thin as 0.03"
  • High-aero heating protection available
  • Rugged construction - designed for harsh environments

Applications

  • Data Links, telemetry, transponder
  • Imaging down link
  • Aircraft
  • Helicopter
  • Drones
  • Missed Distance Targets
  • Missiles
View More Details Antenna Questionnaire
